Living Accents Patio Heater Manual: Setup and Troubleshooting

To safely light and troubleshoot a Living Accents patio heater, you first need to confirm your exact model number, match it to the correct manual, and then follow the specific ignition sequence for that unit. If you have an Andersen Stokke patio heater, use this same model-and-manual approach to find the correct Andersen Stokke patio heater manual for your exact unit. The two most common Living Accents propane heater models are the [46,000 BTU (model 4026216 or B0F1Z3H7N9)](https://manuals.

plus/asin/B0F1Z3H7N9) and the 48,000 BTU (model SRPH33). Both use a standard pilot/knob ignition system and a thermocouple for flame sensing, but the lighting steps differ slightly between variants. This guide walks you through finding the right manual, assembling safely, lighting the heater, and diagnosing the most common problems, step by step.

Identify your Living Accents heater model and find the right manual

Living Accents heaters have been sold under a handful of different model numbers across Home Depot, Ace Hardware, and Lowe's, and the manuals are not always interchangeable. The most important thing you can do before anything else is confirm your exact model number, because the BTU output, ignition sequence, and replacement parts (especially the thermocouple) are all tied to that number.

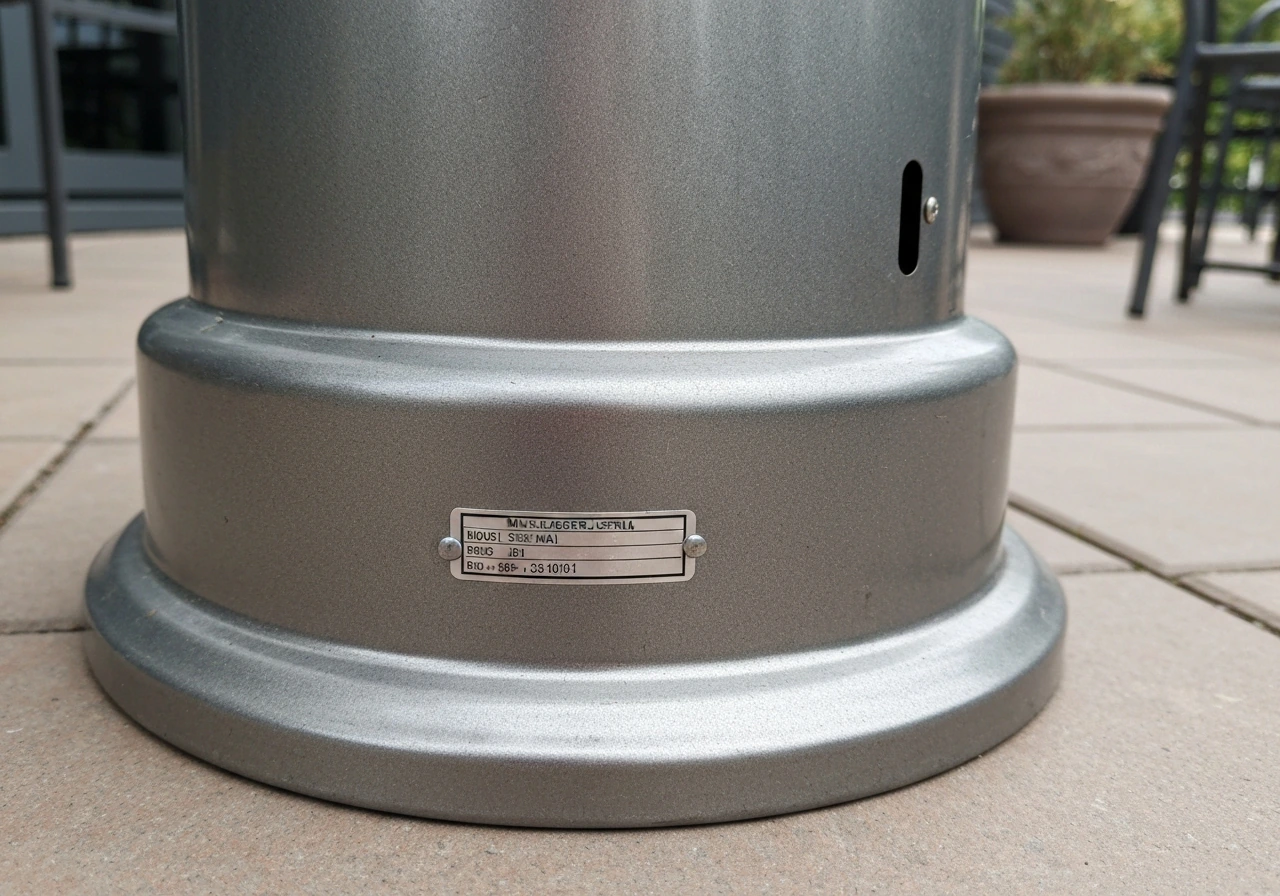

Look for the model and serial number label on the base or lower pole of the heater. It is usually a silver or white sticker. Write down everything on it: model number, BTU rating, fuel type, and serial number. Then cross-reference what you find with these common Living Accents variants:

If your sticker is faded or missing, check your original purchase receipt or the product listing in your retailer account. Home Depot and Ace Hardware both tie manuals to specific SKUs, so logging into your purchase history and finding the original order is often the fastest route to confirming your model.

Where to get the manual (and what to do if it's missing)

If you have the model number, getting the manual is straightforward. Here are the best places to look, in order of reliability:

1. Home Depot product page: Search your model number directly on homedepot.com. Most Living Accents listings include a 'Manuals & Guides' tab that links to a PDF hosted on thdstatic.com. This is the official source.
2. Manuals+: Search manuals.plus for 'Living Accents patio heater' plus your model number. The 46,000 BTU B0F1Z3H7N9 manual is hosted there and is accurate.
3. Ace Hardware product page: If your model is SRPH33, check acehardware.com directly for a spec sheet or downloadable guide.
4. Lowe's product page: Lowe's carries Living Accents 48,000 BTU models and often links documentation in the product details section.
5. Contact the retailer directly: If the PDF link is broken, call the store where you bought it and ask them to email you the document. They usually can pull it from their system.

If the manual is completely unavailable and your model number is unknown, you can still use this guide as a practical equivalent. The ignition procedure, safety layout, and troubleshooting steps covered here are drawn directly from the official Living Accents manuals and apply across the 46,000 and 48,000 BTU propane models. If you are looking for an Alva Patio Gas Heater manual, use the exact model number on your heater to match the correct instructions before troubleshooting official Living Accents manuals. Just know that part numbers (especially the thermocouple, like the SRPH33-THC for the SRPH33 model) are model-specific, so confirm those before ordering any replacement parts.

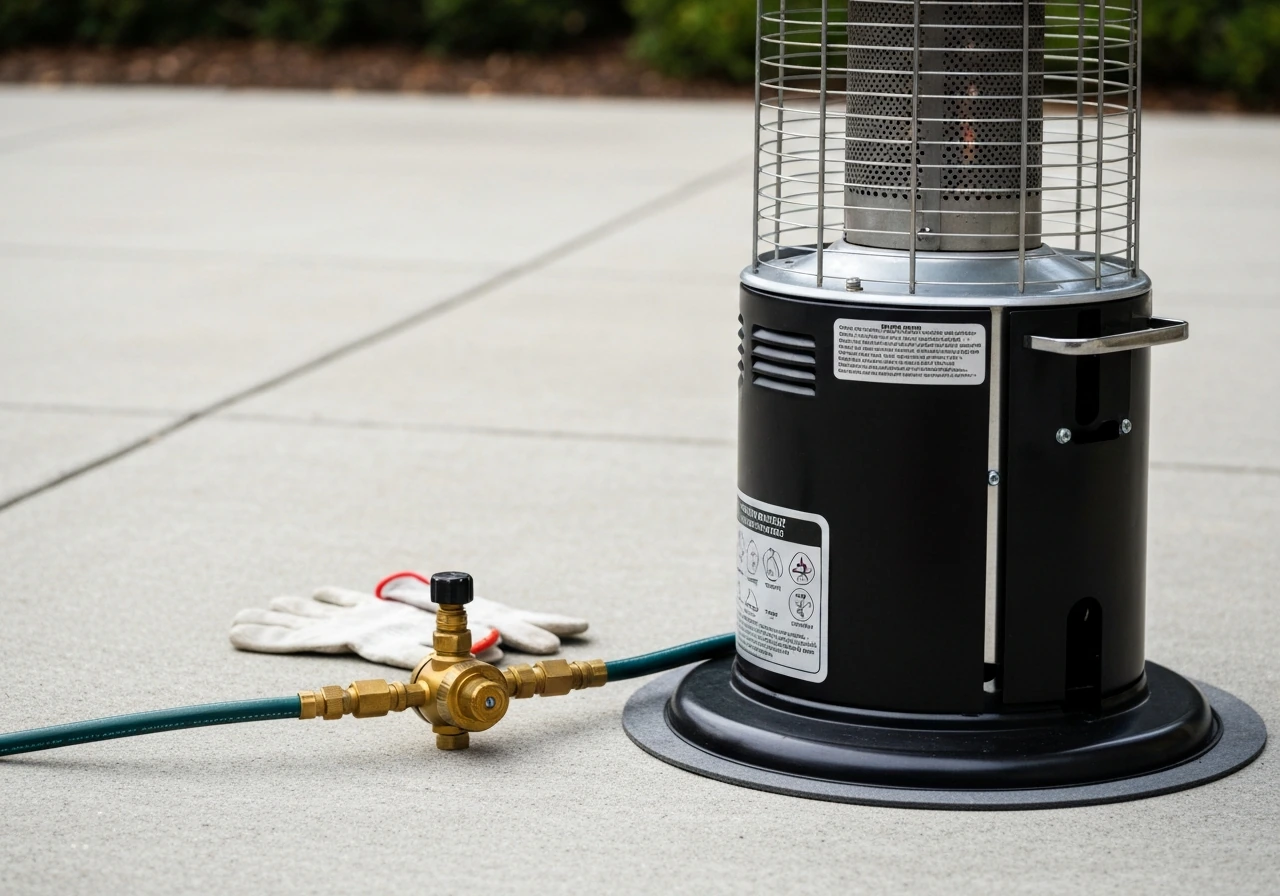

Safe setup and assembly basics before troubleshooting

Whether you're assembling a new heater or getting a stored one ready for the season, the safety checks come first. These aren't formalities. Propane under pressure combined with a loose fitting or cracked hose is a real hazard, and it's easy to catch problems at this stage before you ever open the gas valve.

The manual is explicit on clearances: keep the heater at least 36 inches (91 cm) from walls, ceilings, overhangs, and any combustible materials. Keep children and pets at least 3 feet (1 meter) away during operation. This heater is rated for outdoor use only. Do not run it in a garage, screened porch, tent, or any enclosed space, even with a door open. Carbon monoxide can accumulate faster than you'd expect in a partially enclosed area.

Before connecting a propane tank, run through this pre-use checklist:

• Inspect the hose and regulator for cracks, kinks, or brittle spots. If the hose is stiff or shows any surface cracking, replace it before use.
• Check that all pole connections and fasteners are tight. A wobbly heater is a tip-over risk.
• Make sure the tilt safety switch mechanism (usually inside the base) moves freely and isn't stuck in the tripped position.
• Verify the control knob turns smoothly through OFF, PILOT, LOW, and HIGH positions.

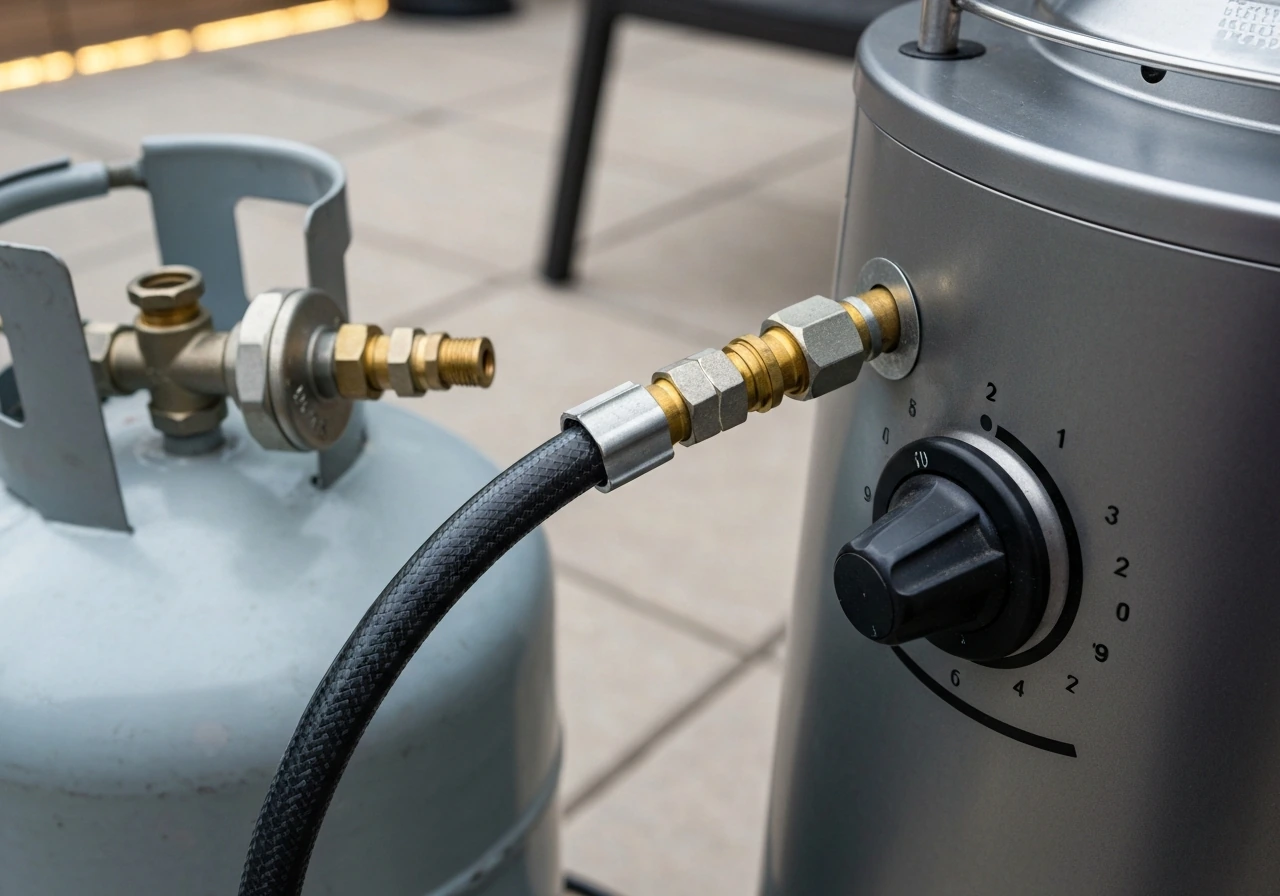

• Connect a standard 20 lb liquid propane tank (not included with the heater). Thread the regulator fitting onto the tank valve by hand, then snug it with a wrench. Do not overtighten.
• Perform a leak test with soapy water: open the tank valve slowly, apply soapy water to all connections, and watch for bubbles. Any bubbling means you have a leak. Tighten the fitting and retest. If it still bubbles, stop and replace the fitting or hose.

Do not skip the leak test. It takes two minutes and it's the single most important step before you introduce any ignition source.

How to light and operate the heater

Living Accents propane heaters use an electronic push-button igniter with a pilot system. The knob controls gas flow through four positions: OFF, PILOT, LOW, and HIGH. Here is the correct lighting sequence based on the official manual:

1. Make sure the control knob is in the OFF position before you do anything else.
2. Open the propane tank valve slowly by turning it counterclockwise. Open it all the way.
3. Push the control knob in and turn it to PILOT. Hold it down firmly. This depresses a safety valve that allows gas to flow to the pilot.
4. Hold the knob at PILOT for 30 to 60 seconds to purge air from the hose and allow propane to reach the pilot burner. If the heater has been sitting unused for a while or is newly assembled, lean toward the full 60 seconds.
5. While still holding the knob in, press the electronic igniter button. You should hear a distinct clicking sound. Press it repeatedly until you see a pilot flame appear through the viewing window or screen at the burner head.
6. Once the pilot lights, keep holding the knob in for another 10 to 15 seconds. This gives the thermocouple time to heat up and generate enough voltage to hold the safety valve open.
7. Slowly release the knob. The pilot should stay lit. If it goes out, return to step 3 and repeat the process.
8. With the pilot lit, turn the knob from PILOT to LOW. Confirm the main burner ignites.
9. Adjust to HIGH for maximum heat output. The heater is now in normal operation.

To shut down, turn the knob back to OFF. Close the propane tank valve. Do not move the heater while it is still hot. Wait until the burner and reflector have cooled before relocating or storing it.

Troubleshooting: won't ignite or no flame at all

This is the most common complaint with patio heaters, and the good news is that most no-ignite problems have simple causes. Work through these checks in order before assuming a major component has failed.

Step-by-step no-ignite diagnosis

1. Check the propane tank level. A tank that feels light when you pick it up is probably empty or near empty. Swap in a known-full 20 lb tank and try again. This solves the problem more often than you'd think.
2. Confirm the tank valve is fully open. Turn it counterclockwise until it stops.
3. Purge air from the line. If the tank is new or was recently changed, air in the hose will prevent ignition. Hold the knob at PILOT for the full 60 seconds before trying to ignite.
4. Check that the igniter clicks. Press the igniter button and listen. If you hear no click, the igniter module may be dead or the electrode wire is disconnected. Trace the wire from the igniter button down to the electrode near the pilot burner and confirm it's seated properly.
5. Check the electrode tip. If the igniter clicks but no spark is visible, look at the ceramic electrode near the pilot. If it's corroded or cracked, it won't spark reliably. Clean it gently with fine sandpaper or replace it.
6. Check that the regulator hasn't locked out. Some regulators have a built-in safety that trips if the tank valve was opened too quickly. Close the tank valve, disconnect the regulator, wait 30 seconds, reconnect, and then open the tank valve very slowly before trying again.
7. Inspect the pilot orifice. If the pilot flame won't appear even with a working spark, the small orifice that feeds gas to the pilot may be clogged with debris or spider webs (common after winter storage). With the gas off, use a can of compressed air to blow out the orifice.

If you've gone through all of these steps and still get nothing, the issue is likely a failed igniter module, a faulty regulator, or a blocked gas valve. At that point you're into component replacement territory.

Troubleshooting: lights but won't stay lit

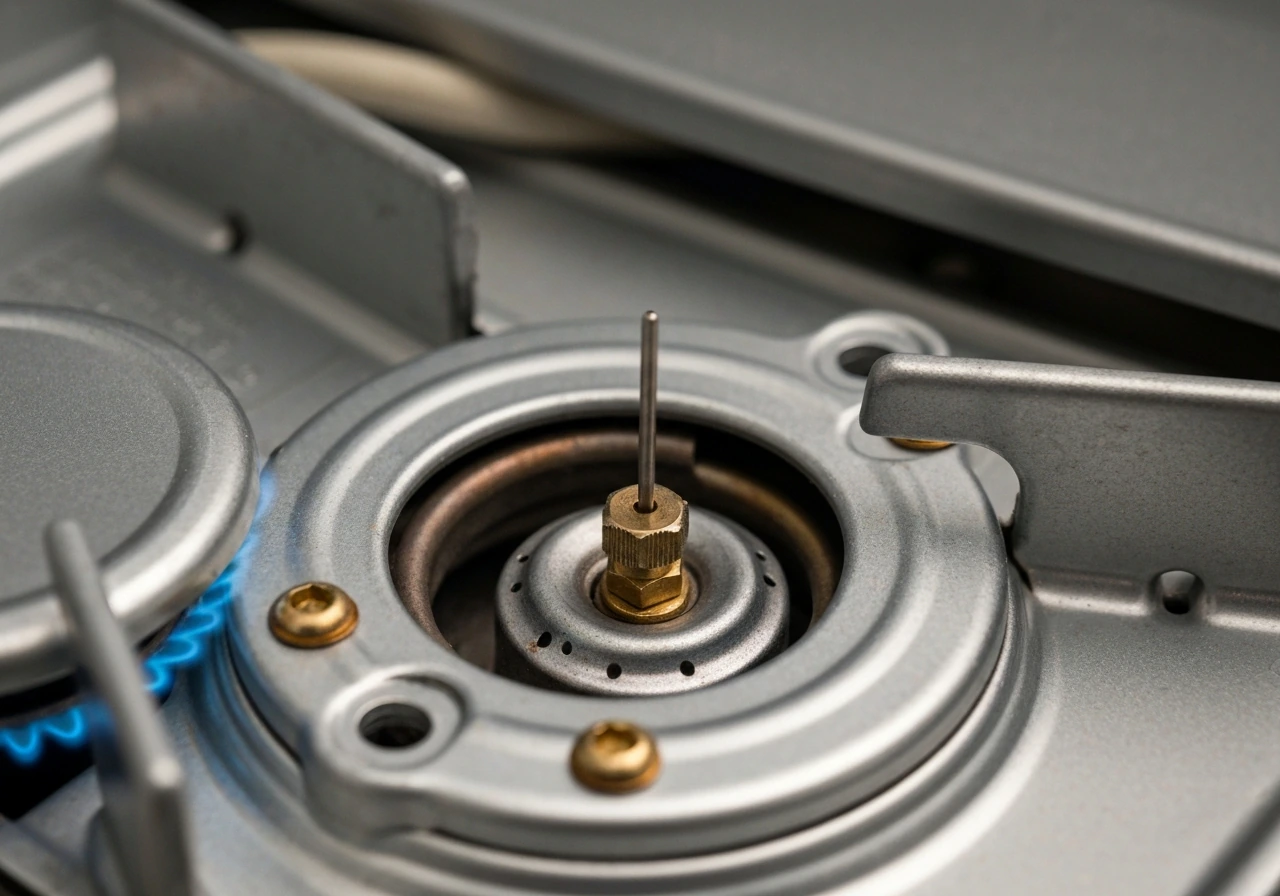

When the pilot lights but then goes out as soon as you release the control knob, the thermocouple is almost always the culprit. The thermocouple is a small metal probe positioned in the pilot flame. When it heats up, it generates a small electrical current that holds the gas safety valve open. If the thermocouple isn't getting hot enough, generating enough voltage, or making proper contact with the valve, the safety valve shuts off gas flow and the flame dies.

Thermocouple checks and fixes

1. Hold longer: Before assuming the thermocouple is bad, make sure you're holding the knob in long enough. The manual says 10 to 15 seconds after the pilot lights, but in practice, a cold or slightly worn thermocouple can need up to 30 seconds. Try holding it for a full 30 seconds and see if it stays lit.
2. Check the pilot flame position: The tip of the thermocouple probe needs to sit directly in the pilot flame. If the flame is weak or blowing to the side, the thermocouple may not be reaching operating temperature. Check that the pilot orifice isn't partially blocked.
3. Clean the thermocouple: A layer of oxidation on the probe can reduce its output. With the gas off and the unit cool, lightly sand the tip of the thermocouple probe with fine-grit sandpaper and wipe it clean.
4. Check the connection at the gas valve: The thermocouple screws or clips into the safety valve on the control assembly. Make sure it's firmly seated. A loose connection is a common cause of intermittent flame-out.
5. Replace the thermocouple: If cleaning and reseating don't fix it, the thermocouple itself has likely worn out. For the SRPH33 model, the replacement part number is SRPH33-THC (16-inch thermocouple). For other models, measure the existing thermocouple length and match accordingly. Thermocouple replacement is a straightforward DIY job: unscrew the old one from the valve body and pilot bracket, screw in the new one, and test.

Gas pressure issues can also cause a flame-out. If the propane tank is less than a quarter full, pressure may drop enough to cause the pilot to sputter out, especially in cooler temperatures. The fix is simple: replace the tank. A damaged or aging regulator can also cause low pressure. If you've replaced the tank and the flame still dies, test the regulator by substituting a known-good one.

Troubleshooting: safety shutdown (tilt switch and overheat sensor)

Living Accents heaters include a tilt safety auto shut-off valve. If the heater tips or leans past a certain angle, the tilt switch cuts gas flow immediately. This is a life-saving feature, but it can also cause unexpected shutdowns if the heater is sitting on an uneven surface or if the switch mechanism is stuck or damaged.

What to check when the heater shuts off by itself

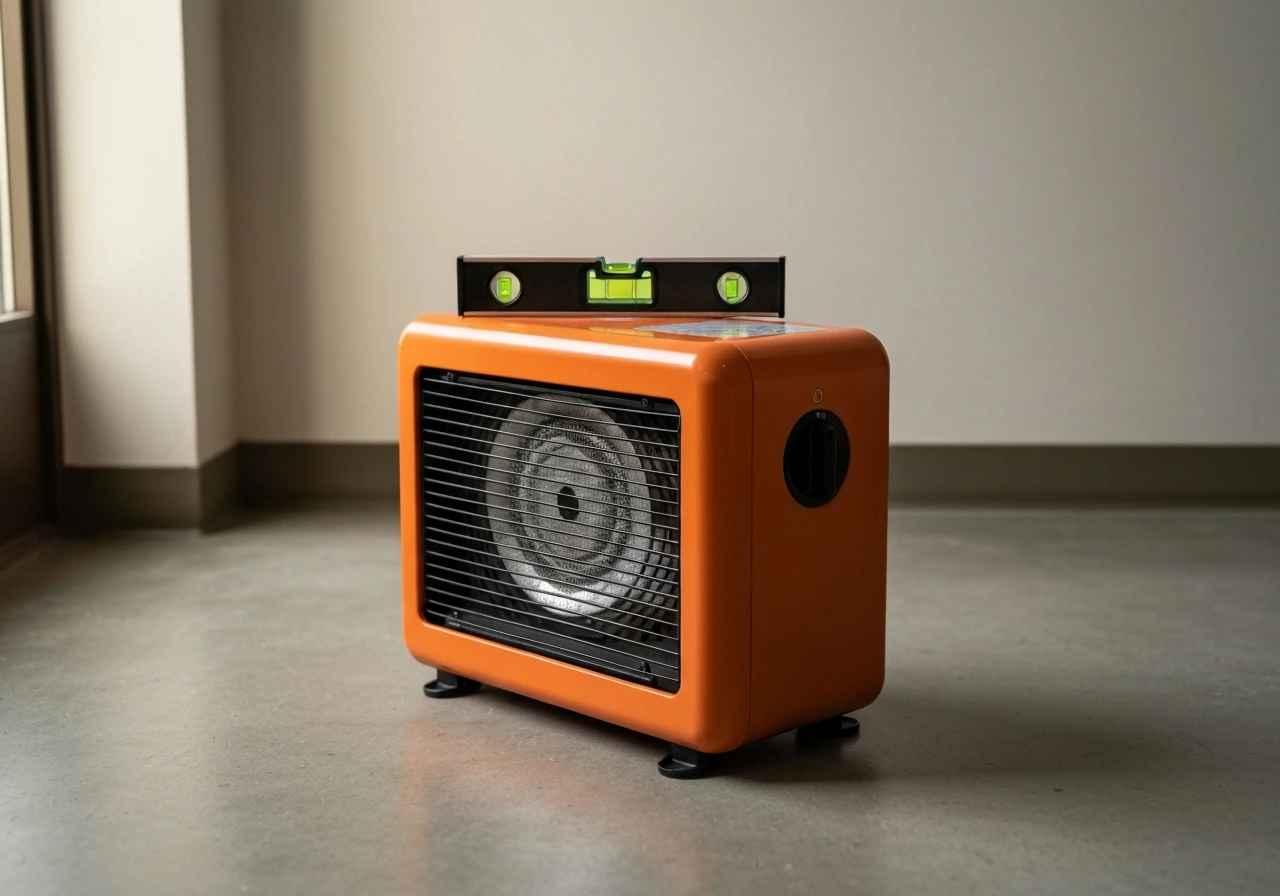

• Check the surface level: Place the heater on a flat, stable surface. Even a slight slope can trip the tilt switch. Use a small level on the base to confirm it's sitting flat.
• Check the base for debris: Rocks, uneven paving stones, or accumulated debris under the base can cause a tilt. Clear the area and reset.
• Reset after a tilt event: After the heater trips, turn the knob to OFF, let it cool briefly, then relevel and restart using the standard lighting sequence.
• Inspect the tilt switch mechanism: The switch is usually a ball-and-socket or mercury-switch style component inside the base housing. If it's visibly stuck or if the heater shuts off even when perfectly level, the switch may be faulty and need replacement.
• Wind-triggered shutdowns: Strong gusts can blow out the pilot or main flame. Relocate the heater to a more sheltered spot and restart. If wind is a recurring problem, a wind guard or positioning near a fence or wall (while maintaining the 36-inch clearance) can help.

Some models also have an overheat sensor at the burner head that can trigger a shutdown if airflow is restricted. Make sure the reflector and burner screen are clear of debris and that nothing is sitting on or near the top of the heater while it operates.

When to stop DIY and call for service

Most of what goes wrong with Living Accents heaters is fixable at home: empty tanks, thermocouple replacement, electrode cleaning, and tilt-switch resets. But there are situations where you should stop, shut the gas off completely, and call a qualified gas appliance technician instead of continuing to troubleshoot yourself.

• You smell gas and the soap test confirms a leak that you cannot trace to a loose fitting. If tightening connections doesn't stop bubbling, there may be a crack in the valve body or regulator. Do not operate.
• The control knob is stuck, broken, or won't reach the OFF position. This is a gas valve failure and it needs a pro.
• You see visible damage to the gas valve, regulator, or burner assembly, like cracks, corrosion, or burn marks on metal parts that should not be scorched.
• The heater shuts off repeatedly and none of the DIY steps resolve it, especially if you suspect an internal valve or regulator problem.
• You replaced the thermocouple and the heater still won't stay lit, and the propane supply is confirmed full and at correct pressure. At that point, the safety valve itself may have failed.

Propane appliances are repairable and are not meant to be thrown away after one season. But gas valves, regulators, and internal valve bodies are not user-serviceable components. If the problem is inside the valve assembly, a technician with the right tools needs to handle it.

Seasonal maintenance and safety checklist

• Before each season: perform a full soapy-water leak test on all connections before the first use.
• Inspect the hose and regulator for cracks, stiffness, or damage. Replace them every few years even if they look okay.
• Clean the pilot orifice and burner ports with compressed air to remove spider webs and debris, which are the number one cause of no-ignite problems after storage.
• Check the thermocouple for oxidation and clean or replace it if it's been more than two seasons.
• After each use: close the propane tank valve. This is the most important habit to build.
• For storage: disconnect the propane tank completely and store the heater in a dry, protected area. Do not store indoors with the tank attached.
• Never leave the heater unattended while operating, and always keep a fire extinguisher accessible nearby.

If you're also working through a manual for another propane patio heater brand, the diagnostic logic for thermocouple failures, ignition sequences, and tilt-switch resets covered here transfers well across similar freestanding propane units from other manufacturers. If you have an Enders Elegance patio heater, the manual will give the exact lighting and troubleshooting steps for your specific model and thermocouple Enders Elegance patio heater manual. If you are also using a Style Selections gas patio heater manual, compare its ignition sequence and safety checks with the steps here before troubleshooting. The component names and part numbers will differ, but the underlying systems work the same way.
