The correct manual for your Endless Summer patio heater depends on the exact model number stamped on the label, not just the brand name. If you are dealing with a Patio Glow fire pit, use its specific manual to confirm model details and the correct setup steps Patio Glow fire pit manual. Two common models are the ES5000COMM (a 40,000 BTU/hr LP gas heater made by Blue Rhino Global Sourcing) and the GAD15290ES (available as a PDF on endlesssummerheat.com). Once you confirm which one you have, the right manual covers everything from assembly and leak testing to ignition, thermocouple failures, and tilt switch resets. This guide walks you through all of that in order.

Step 1: Identify Your Exact Endless Summer Model

"Endless Summer" is a brand name that covers several different heater designs, so before you do anything else, you need the actual model number. Without it, you risk following the wrong assembly sequence or ordering the wrong parts.

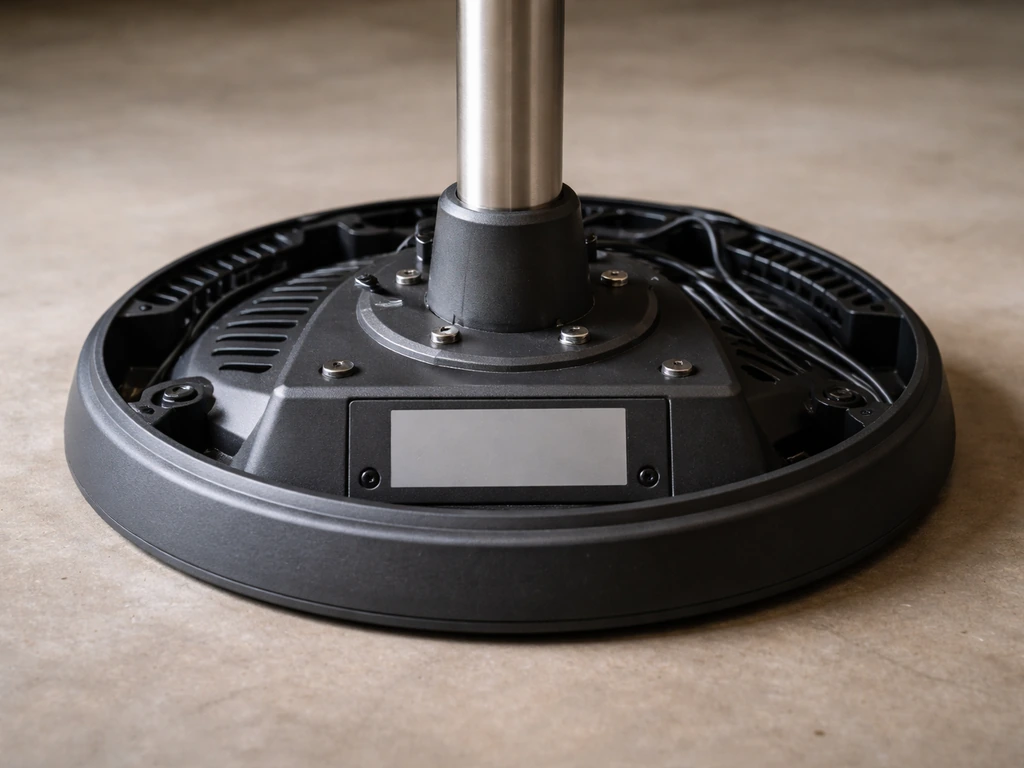

Flip the heater base upside down or look along the pole shaft and base panel for a sticker or stamped metal plate. It will list the model number, serial number, BTU rating, and fuel type. Common Endless Summer model numbers include ES5000COMM and GAD15290ES, but there are others. Write down the full model number and serial number before you go any further. If the label is worn or missing, check the original purchase receipt or the box if you still have it.

A few things to note while you are looking at the label: confirm the fuel type (most Endless Summer patio heaters run on liquid propane, not natural gas) and check the BTU rating. The ES5000COMM, for example, is rated at 40,000 BTU/hr. That rating matters if you ever need to match a replacement regulator or burner assembly.

Step 2: Find and Confirm the Right Manual

Once you have your model number, finding the correct PDF is straightforward. Here are the best sources in order of reliability:

1. endlesssummerheat.com — the official Endless Summer brand site. The GAD15290ES owner's manual PDF is hosted directly here. Search the site using your model number or navigate to the support/manuals section.
2. parts.BlueRhino.com — Blue Rhino Global Sourcing manufactured many Endless Summer heaters including the ES5000COMM. Their parts site often links to documentation, and you can confirm the manual by matching the model number on the document's cover page or header.
3. The physical label on your heater — if it lists a document number or revision date, use that to cross-check any PDF you download.
4. Retailer product pages (Home Depot, Walmart, Menards) — these often post the owner's manual as a downloadable file on the product listing. Search for your exact model number on the retailer where you originally bought it.

When you open the PDF, verify it is the right one before relying on it. Check that the model number on the manual's cover or specifications page matches the number on your heater's label exactly. A manual for ES5000COMM looks very similar to one for a nearby model, and the differences in ignition sequences or regulator specs can matter. If the BTU rating, fuel type, or parts diagram does not match what you see on your actual heater, keep looking.

Safety Checks Before You Touch the Gas

The ES5000COMM manual is explicit about this: always perform a leak test before lighting the heater, and repeat it every single time you reconnect the propane cylinder. This is not optional. Shipping vibrations, seasonal storage, and normal wear can all loosen fittings without any visible damage.

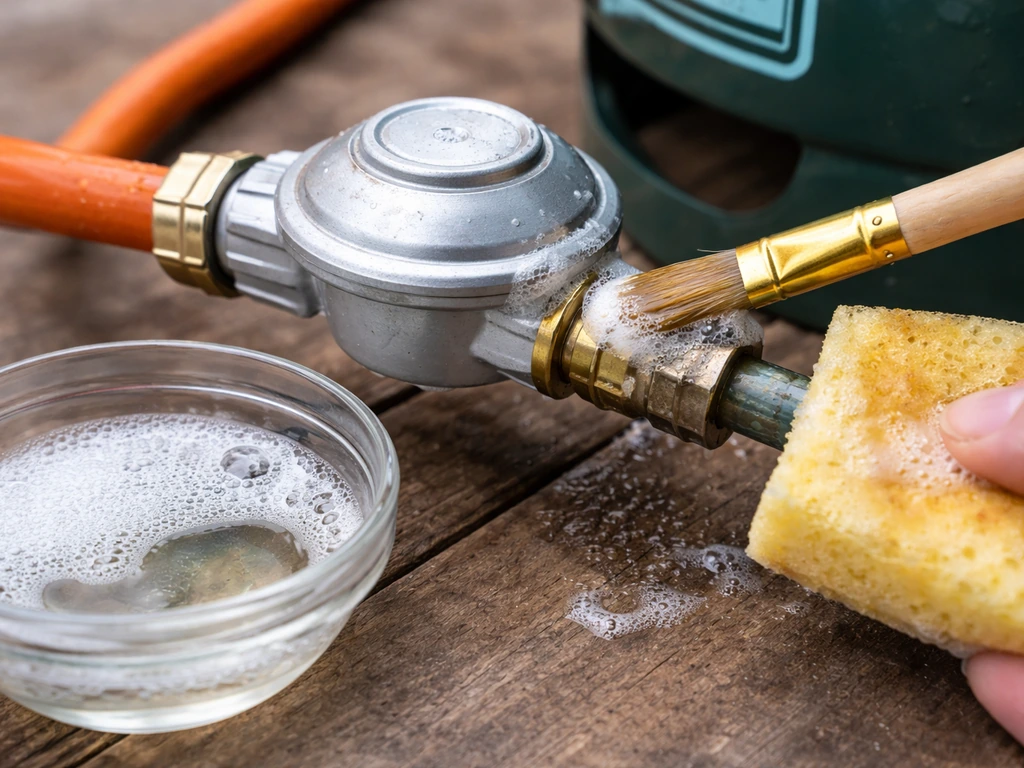

Here is how to do the leak test safely. Mix a solution of dish soap and water. With the LP tank valve fully closed, connect the regulator and hand-tighten all fittings. Move the heater outdoors to a well-ventilated area before opening any gas. No smoking, no open flames, and absolutely do not use a match or lighter to check for leaks. Open the LP tank valve slowly, then brush the soapy water solution over every connection: the regulator fitting at the tank, the hose connections, and any joints along the gas line. Bubbles forming at any point mean you have a leak. Close the tank valve immediately, tighten the connection or replace the part, and test again. Do not operate the heater if you have a confirmed leak.

• Use a 20 lb (5 gallon) propane tank — that is the specified size for the ES5000COMM
• Maintain clearance distances listed in your manual (typically at least 3 feet from combustibles on all sides and 6–8 feet of overhead clearance)
• Never use indoors, in a garage, or in any enclosed space
• Check that the tilt switch mechanism moves freely before lighting (more on this below)
• Inspect the regulator hose for cracks, kinks, or rodent damage before each season

Assembly and Initial Setup

Endless Summer heaters typically ship in three to five main sections: the base, the lower pole, the upper pole with burner assembly, the emitter screen, and the reflector/dome. Your manual will have a numbered parts diagram, refer to it as you go. Here is the general sequence the manual follows:

1. Attach the base legs and secure all bolts finger-tight first, then torque them down evenly so the base sits flat.
2. Thread the lower pole into the base collar and route the gas supply hose up through the pole center as directed in your parts diagram.
3. Connect the upper pole to the lower pole, aligning the gas line connections before tightening the pole collar.
4. Attach the burner head assembly to the top of the upper pole, connecting the gas fitting and any igniter wiring per the diagram.
5. Install the emitter screen and reflector dome, securing all fasteners.
6. Connect the regulator to the LP tank — do not overtighten, hand-snug plus a quarter turn with a wrench is typically enough.
7. Perform the full leak test described above before any attempt to light the heater.

One important note: even if someone else assembled the heater for you, the manual states you must still check for leaks yourself before operating. Assembly by a retailer or another person does not substitute for your own pre-use leak check.

Troubleshooting: Ignition, Won't Stay Lit, Tilt Switch, and Thermocouple

This is where most people get stuck, and the manual's troubleshooting table is your best tool here. I'll walk through the most common symptoms in the order you are most likely to encounter them.

Pilot or Burner Won't Light At All

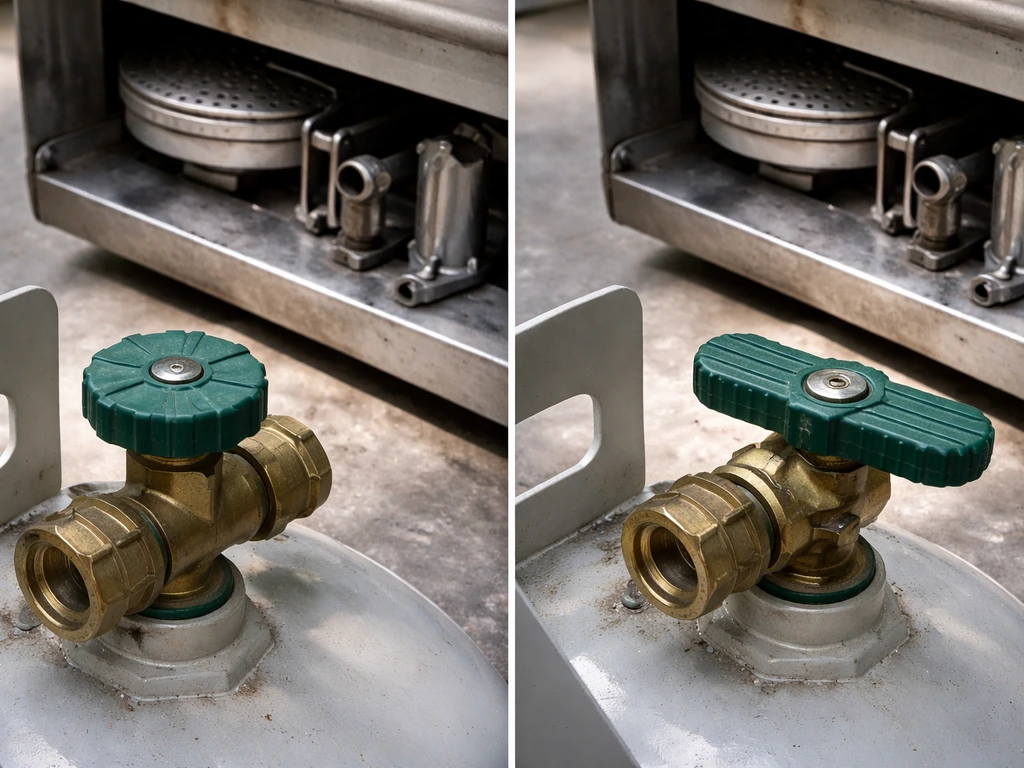

Start with the obvious: is the LP tank valve open? The manual lists a closed tank valve as the first cause of a pilot that won't light. Turn it fully counterclockwise to open. Next, confirm the regulator is seated securely, remove it and reattach it if you are not sure.

If the valve is open and gas is flowing but nothing lights, you likely have air in the gas line, especially if the tank is new or was just reconnected. The manual's fix: push and hold the control knob in to bleed the line, but do this for no more than 1 to 2 minutes, or stop as soon as you smell gas (whichever comes first). If you smell gas, stop, turn the knob to OFF, wait at least 5 minutes for any accumulated gas to dissipate, then try the ignition sequence again.

If the pilot still won't light after bleeding the line, check for a blockage in the pilot orifice. The manual's prescribed fix is to clean the pilot assembly following the cleaning instructions on BlueRhino.com. Debris, spider webs, and rust scale are common culprits, especially on a heater that has been stored for a season.

Pilot or Burner Lights But Won't Stay Lit

This is almost always a thermocouple problem. The thermocouple is a small metal probe that sits in the pilot flame and generates a tiny electrical current to keep the gas valve open. If it is dirty, corroded, or out of position, it will not generate enough current, and the safety valve will shut the gas off a few seconds after you release the control knob.

The manual's two-step decision tree for this is clean first, replace if cleaning does not fix it. Clean the thermocouple tip and the pilot assembly using the instructions from BlueRhino.com (they are more detailed than what's in the printed manual). Use fine steel wool or a dry cloth to gently remove any oxidation from the thermocouple tip. Reassemble and test. If the pilot still drops out after 30 to 60 seconds, the thermocouple is not generating enough current to hold the valve open, and you need a new pilot assembly. The manual is clear on this point: do not attempt to adjust or bend the thermocouple yourself; just call Customer Care and order a replacement pilot assembly.

Tilt Switch Shutting the Heater Off

The ES5000COMM has a built-in tilt switch as part of its 100% burner shut-off safety system. If the heater tips past a certain angle, the switch cuts the gas immediately. This is a good safety feature, but it can also cause frustrating shutdowns if the heater is on an uneven surface, if the base is not fully assembled and level, or if the tilt switch mechanism itself is stuck or faulty.

If your heater keeps shutting off unexpectedly, check the surface it's sitting on first. Move it to flat ground and test again. If it still shuts off on a level surface, check the tilt switch connection. On most Endless Summer models the switch is located in the base of the pole or inside the base housing, and the wiring connector can vibrate loose over time. Reseat the connector and test. If the switch itself is faulty, it needs to be replaced rather than bypassed. Disabling a tilt switch is a serious safety risk, and the manual does not authorize it.

Quick Troubleshooting Reference

Maintenance and Cleaning Schedule

The manual does not give a rigid calendar schedule, but the cleaning guidance from BlueRhino.com that the troubleshooting section references repeatedly is the backbone of keeping this heater running. Here is what regular maintenance looks like in practice:

• Before each season: inspect the regulator hose for cracks, brittleness, or kinks; replace if in doubt
• Before each season: clean the pilot assembly and burner orifice with compressed air or a soft brush to clear any debris or insect nesting
• Before each season: perform a full leak test after reconnecting the propane tank
• Before each use: visually inspect the reflector dome and emitter screen for damage or blockage
• Before each use: confirm the tilt switch mechanism moves freely and the heater is on level ground
• During storage: cover the heater with a weather-resistant cover, disconnect and remove the propane tank, and store the heater in an upright position
• As needed: clean the thermocouple tip with fine steel wool if the pilot becomes unreliable

Never use water or liquid cleaners on the burner head or pilot assembly. Compressed air and dry brushing are the right tools there. The outer pole and base can be wiped down with a damp cloth, but keep moisture away from all gas fittings and igniter components.

Parts Identification: Repair vs. Replace

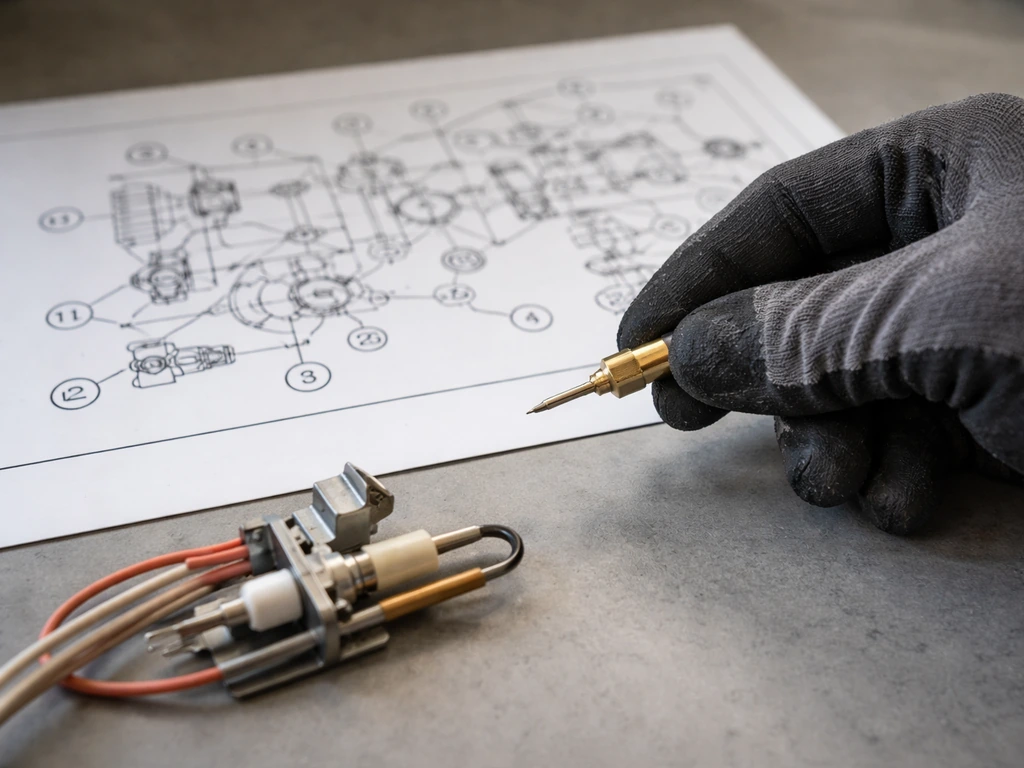

Your manual includes a parts diagram with numbered components. Use that diagram to identify exactly what you are looking at before ordering anything. The key replaceable components on most Endless Summer models are the pilot assembly (thermocouple and igniter together), the regulator and hose assembly, the control valve, and the tilt switch. Here is a practical decision guide:

For genuine Endless Summer / Blue Rhino parts, the official source is parts.BlueRhino.com. Have your model number and serial number ready before you search, the parts catalog is organized by model, and ordering the wrong part because you only searched by description is a very common and frustrating mistake. Third-party parts can work for things like emitter screens and covers, but for anything in the gas path (regulator, valve, pilot assembly), stick to OEM parts or parts verified compatible with your specific model.

One honest reality check: if the main control valve body is cracked, corroded internally, or leaking from the valve stem, the repair cost often approaches the cost of a new heater. The same applies if the pole itself is badly corroded at the gas fitting joints. At that point, replacement is the smarter call.

How to Contact Endless Summer / Blue Rhino Support

If you have worked through this guide and the heater still is not functioning correctly, getting support is straightforward. The manufacturer behind most Endless Summer patio heaters is Blue Rhino Global Sourcing, Inc. Their Customer Care line is 1.800.762.1142. Before you call, gather the following information, it will make the conversation much faster and more productive:

• Full model number (example: ES5000COMM or GAD15290ES)
• Serial number from the label
• Date of purchase and retailer if you have it
• A clear description of the symptom: what happens exactly, at what point in the ignition sequence, and what you have already tried
• Whether the heater is still under warranty (check your manual's warranty section for the coverage period)

You can also visit parts.BlueRhino.com directly to order replacement parts using your model number, or browse the Endless Summer FAQ at endlesssummerheat.com for additional troubleshooting on tilt switch and thermocouple issues that may not be fully detailed in the printed manual PDF.

If you are working through similar issues on a different brand, the same diagnostic approach applies. You can also find the fire sense patio heater manual for your exact model number to confirm the correct troubleshooting steps. Heaters from Garden Treasures, Fire Sense, Sunjoy, and similar brands all share the same core components and failure modes, so the troubleshooting logic here translates well even when the manual numbers look different.
