Cuisinart Tabletop Patio Heater Manual Guide and Fixes

The main Cuisinart tabletop patio heater manual you want is for the COH-500 (also sold as COH-500P and COH-512 depending on color and retailer). It covers a portable propane tabletop heater rated at 11,000 BTU/hr, running off a standard 1-lb propane cylinder. The official PDF is hosted on Cuisinart's site and accessible through their Heaters & Fire Pit Manuals page. If your unit matches that description, that manual is your guide. If it doesn't, read on so you can confirm your exact model before you start any work.

Find your exact Cuisinart tabletop patio heater model first

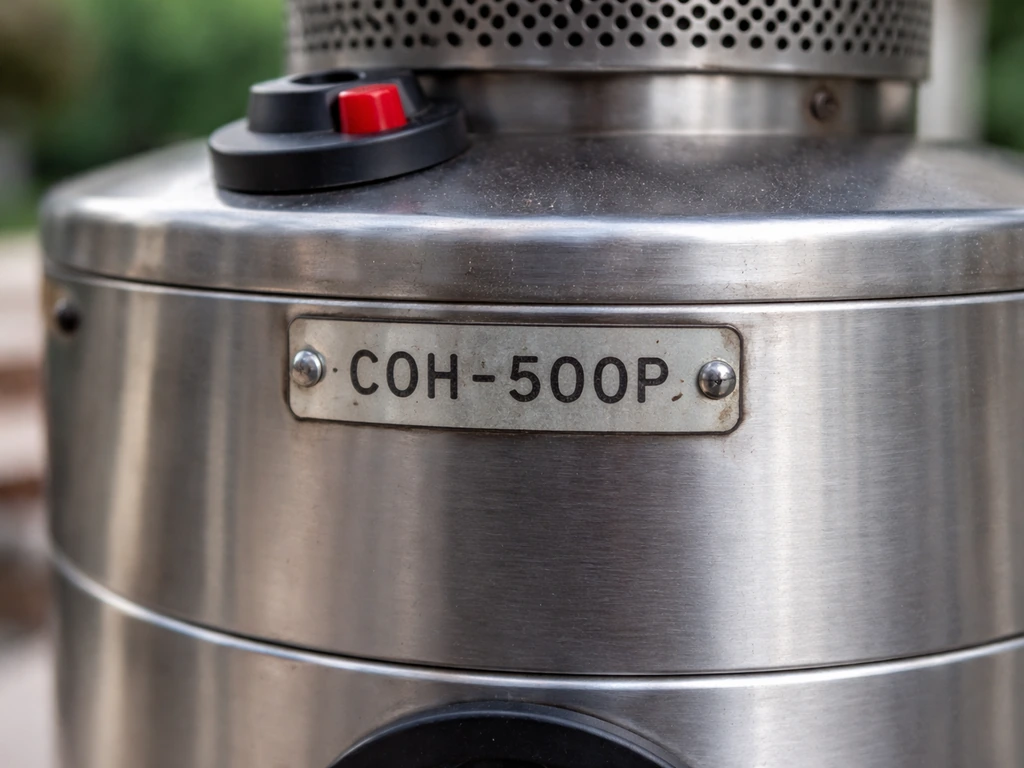

Cuisinart sells more than one outdoor heater, and pulling the wrong manual is a common mistake that leads to following instructions for the wrong regulator type or ignition layout. Before you do anything else, flip the heater over or check the base of the unit for a label. On the COH-500 series, the model number is printed on a silver or white sticker on the underside of the base. You're looking for COH-500, COH-500P, or COH-512. The P and the color suffix (Navy, for example) are just color variants. Functionally and mechanically, they're the same heater with the same manual.

If the label is faded or peeled, check your original purchase receipt or box. Retailers like Cuisinart's own website list the model code in the URL. If you bought the COH-512, for example, the product page confirms it's the Portable Tabletop Patio Heater, and the COH-500 manual covers it. If you bought the COH-512, Cuisinart's portable tabletop patio heater product page shows the COH-512 model code in the URL and confirms the exact product identifier If you bought the COH-512, for example. The key specs to verify: propane fuel, 1-lb cylinder connection, and 11,000 BTU/hr heat input. If your heater uses a bulk tank with a hose and regulator instead of a 1-lb screw-on cylinder, you have a different unit and need a different manual.

How to find and use the correct Cuisinart patio heater manual

The official source is Cuisinart's Heaters & Fire Pit Manuals page at cuisinart.com. Look for the Portable Tabletop Patio Heater entry (listed as COH-500P) and click the View Manuals link. This belleze patio heater manual can help you understand the correct steps and safety checks before using your unit. That takes you to a PDF titled "PORTABLE PROPANE TABLETOP HEATER Model NO: COH-500" hosted on Cuisinart's media server. If you have the Sunbeam Patio Master manual instead, use it in the same way to confirm model-specific safety, parts, and troubleshooting steps. Download it and save a local copy so you have it offline when you're working outside. The full title at the top of that PDF is your confirmation you have the right document.

Once you have it open, the manual is organized into sections covering safety warnings, parts identification, assembly, operation, and troubleshooting. Don't skip the parts diagram. It labels every component by name, which matters a lot when you're diagnosing issues like a bad thermocouple or a stuck tilt switch. Knowing the Cuisinart-specific part names makes it easier to search for replacement parts if you need them. Read the safety section once before you touch the heater. It's not boilerplate. Propane is genuinely dangerous, and the manual's warnings about ventilation, leak checks, and cylinder handling are specific and worth following.

Assembly and initial setup checks

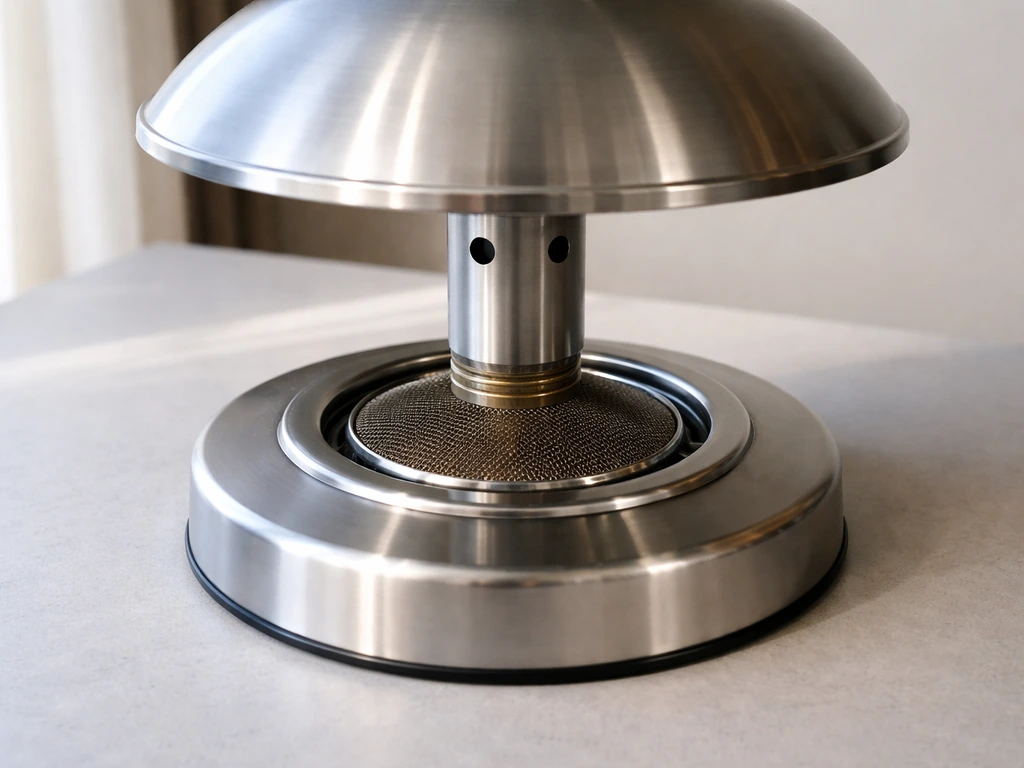

The COH-500 arrives mostly assembled. The main setup tasks are attaching the heat reflector (the dome on top), making sure the burner screen is seated properly, and connecting the 1-lb propane cylinder. Here's how to go through those steps without missing anything.

1. Set the heater on a flat, stable, non-combustible surface before you do anything. The tilt switch will cut off gas flow if the unit isn't level, so a wobbly table will cause ignition problems from the start.
2. Attach the reflector dome by aligning the tabs with the slots on the top of the burner housing and pressing down until it clicks or seats firmly. A loose dome causes uneven flame and heat dispersion.
3. Inspect the burner screen for dents, blockages, or debris. The screen protects the burner ports. If it's clogged with spider webs or insects (a very common issue after storage), clean it before connecting gas.
4. Thread the 1-lb propane cylinder into the base connection by hand, turning clockwise. Do not use tools. Finger-tight is correct. Overtightening can damage the valve seat.
5. Before first use, mix a small amount of dish soap with water and apply it to the cylinder connection point with a brush or cloth. Turn the control knob to the pilot position briefly to pressurize, then check for bubbles. Any bubbling means a leak. Stop immediately, disconnect the cylinder outdoors, and inspect the threads.
6. Place the heater at least 3 feet from any wall, furniture, or overhead surface. The manual specifies minimum clearances, and tabletop placement adds height, so check the overhead clearance too.

Operating the heater: ignition, flame behavior, and shutoff

Starting it up

The COH-500 uses a push-button piezo igniter combined with a turn-and-hold control knob. The sequence matters. If you rush it, the thermocouple doesn't have time to heat up and the gas valve closes automatically, which is exactly how it's supposed to work. Follow this order every time.

1. Make sure the cylinder is connected and the heater is on a stable, level surface.
2. Turn the control knob to the pilot or ignition position (usually marked with a flame icon or the word PILOT). You'll need to press the knob in as you turn it.
3. While pressing the knob in, press the igniter button. You should hear a click and see a small pilot flame through the viewing window or at the burner.
4. Keep the knob pressed in for 30 to 45 seconds after the pilot lights. This is the critical step most people skip. The thermocouple needs that heat to generate enough voltage to hold the gas valve open.
5. Slowly release the knob. If the flame stays lit, turn the knob to your desired heat setting (low, medium, or high).
6. If the flame goes out when you release the knob, wait 5 minutes before trying again. Residual gas needs to dissipate.

What a normal flame looks like

A healthy flame on the COH-500 is blue with a small yellow tip at the top of the burner ports. Mostly yellow or orange flame usually indicates incomplete combustion, often from a dirty burner or a partially blocked air intake. If the flame is very low even on the high setting, the cylinder is likely nearly empty or the regulator is in flow-limiting mode (which can happen if the cylinder was opened too fast). A flame that lifts off the burner or makes a roaring sound usually means too much air or a loose burner component.

Shutting it off correctly

Turn the control knob to the OFF position. The flame extinguishes immediately. Let the heater cool for at least 15 minutes before handling the dome or moving it indoors. After each use, or if you're storing the heater for any period, disconnect the propane cylinder by unscrewing it counterclockwise and store it upright outdoors or in a ventilated space. Never store a connected cylinder inside a garage, shed, or enclosed area.

Troubleshooting: won't ignite or won't stay lit

These are the two most common calls I see on tabletop propane heaters, and the COH-500 is no exception. Both problems have overlapping causes, so work through them in order before replacing anything.

Won't ignite at all

1. Check the cylinder. An empty or nearly empty 1-lb cylinder is the number one cause. If you can't remember the last time you replaced it, that's your answer. Screw in a fresh one and try again.
2. Check the igniter spark. Press the igniter button with the heater in a dim area and look for a visible blue spark at the igniter tip near the burner. No spark means the igniter electrode is dirty, wet, or cracked, or the igniter button mechanism has failed.
3. Clean the igniter electrode. Use a dry cloth or fine sandpaper to clean any carbon buildup off the tip. The gap between the electrode and the burner should be about 3 to 4mm. If it's wider, gently bend the electrode back into position.
4. Check the cylinder connection. Disconnect and reconnect the cylinder. Sometimes a cross-threaded or slightly loose connection prevents gas from flowing.
5. Open the cylinder valve slowly. Opening it too fast can trigger the OPD (overpressure device) on the cylinder, which shuts off flow as a safety measure. Disconnect, wait a minute, reconnect, and open the valve one full turn slowly.

Ignites but won't stay lit

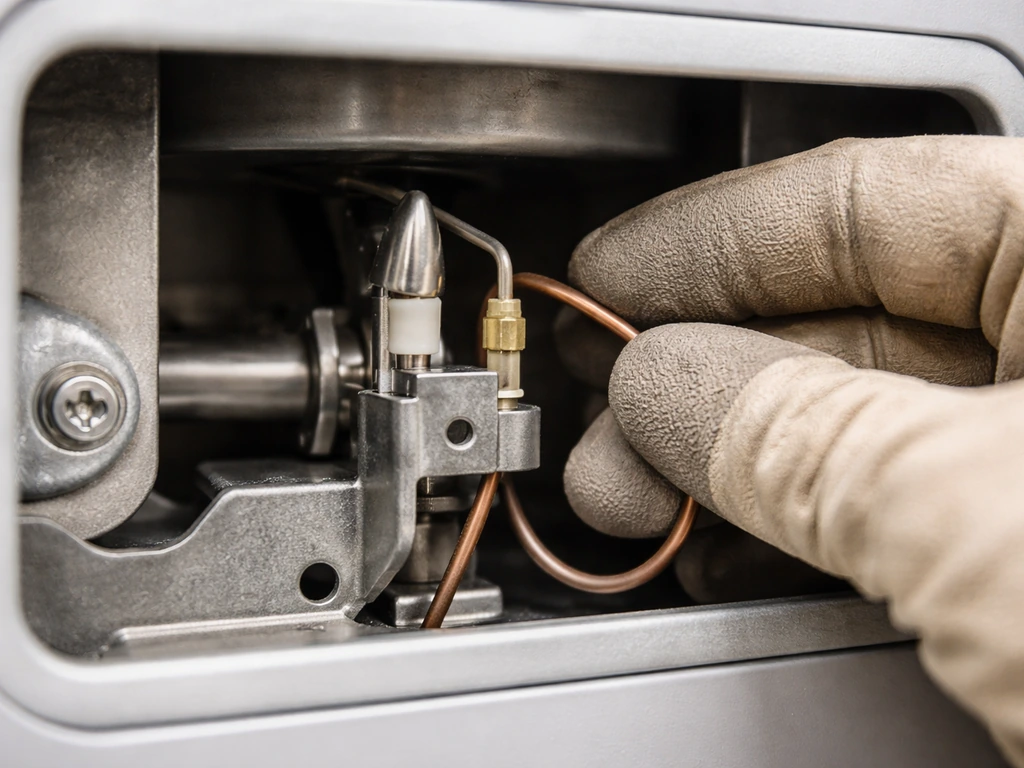

If the pilot lights but goes out the moment you release the knob, the thermocouple is almost always the culprit. The thermocouple is a thin metal probe positioned in the pilot flame. It generates a small electrical signal that tells the gas valve to stay open. If it's not getting hot enough, generating too weak a signal, or is physically damaged, the valve closes and the flame dies. The hold-in time is critical: you must keep the knob pressed in for a full 30 to 45 seconds. Many people hold it for 10 to 15 seconds and assume the thermocouple is bad when it's actually just undertested.

1. Try the full 45-second hold first, even if you think you already did it. This resolves the issue more often than you'd expect.
2. Inspect the thermocouple tip position. It needs to sit directly in the pilot flame. If the tip has shifted, bent away from the flame path, or is coated in carbon, it won't heat properly. Clean the tip gently with fine steel wool and check its position against the parts diagram in the manual.
3. Check for a weak pilot flame. If the pilot flame is very small and barely reaching the thermocouple, a partially blocked pilot orifice is likely. Use compressed air (not a metal tool) to clear the orifice.
4. If the thermocouple has been cleaned and repositioned and the issue persists, it likely needs replacement. Thermocouples on tabletop propane heaters are standard components and usually cost less than $15.

The hardware and safety components most likely to cause problems

The COH-500 manual explicitly lists two built-in safety features: a thermocouple and a tilt switch. Both are there to prevent dangerous gas flow situations, and both can cause the heater to shut off or refuse to light when they fail or are triggered incorrectly.

The tilt switch specifically

The tilt switch is a safety device that interrupts gas flow if the heater tips beyond a safe angle. On the COH-500, it's located inside the base housing. If your heater won't ignite at all and the cylinder is full, check the surface you're working on. Even a slight lean from a warped table or a deck with a drainage slope can trigger the tilt switch. Move the heater to a confirmed level surface, wait a few minutes, and try again. If it still won't ignite, the tilt switch itself may have failed in the open (off) position. Testing it requires a multimeter to check continuity, which is straightforward if you're comfortable with basic electrical testing. A tilt switch that has failed closed (always passing current) is a safety hazard and the heater should not be used until it's replaced.

Gas supply issues

A 1-lb propane cylinder has a built-in OPD valve that limits flow if the valve is opened too quickly or if the cylinder is overfilled. If you get flame for a moment and then it drops to almost nothing, disconnect the cylinder, let it sit for a minute, reconnect, and open the valve very slowly (no more than one full turn). That typically resets the OPD. Also check the hose connection and the inside of the cylinder fitting for debris or damage. A damaged cylinder valve is not repairable. Discard that cylinder safely and use a new one.

Maintenance checklist to prevent future failures

Most of the ignition and flame issues I see are completely preventable with a quick inspection before each season and basic care after each use. Here's what the COH-500 manual-aligned maintenance routine looks like in practice.

Before each use (or after any storage period)

• Inspect the burner screen for spider webs, insect nests, and debris. This is the single most common cause of burner issues after storage.
• Check the cylinder connection threads for damage or corrosion. A cross-threaded connection can leak.
• Do a soap-and-water leak test on the cylinder connection every time you attach a new cylinder.
• Verify the heater is on a level, stable surface before trying to ignite.
• Look at the igniter electrode. If it has visible carbon buildup, clean it before you try to light the heater.
• Check the reflector dome is properly seated and not loose.

After each use

• Turn off the control knob and allow the heater to cool fully before moving it.
• Remove the propane cylinder and store it upright outdoors or in a well-ventilated area. Never store inside.
• Wipe down the exterior of the heater with a dry cloth to remove moisture, food residue, and debris.
• Cover the heater with a breathable cover if leaving it outdoors. Avoid airtight covers that trap moisture.

Seasonal inspection (once a year or before first use of the season)

• Visually inspect the entire burner assembly for corrosion, especially the thermocouple tip and igniter electrode.
• Use compressed air to blow out the burner ports and pilot orifice.
• Check the control knob for smooth operation. Stiff or grinding movement suggests internal wear or debris.
• Inspect the base for any signs of rust or structural damage that could affect stability.
• Test the tilt switch function by deliberately tilting the heater past 45 degrees with a cylinder connected and the pilot lit. The flame should extinguish. If it doesn't, the tilt switch has failed and the heater needs service before use.
• If the heater hasn't been used in over 12 months, replace the propane cylinder even if it feels like it still has gas. Cylinder valves can degrade during long storage.

When to call a professional instead of DIY

Most COH-500 fixes are genuinely DIY-friendly, but there are a few situations where you should stop and get professional help. If your model uses a quartz glass tube, the instruction manual will also cover the specific safe handling and ignition checks for that heater style quartz glass tube patio heater instruction manual. If you smell gas and can't identify or eliminate the source after a thorough inspection, stop using the heater entirely. If the control valve itself is leaking, sticking, or not moving correctly, that's not a DIY repair. If the burner housing is cracked or visibly deformed from heat damage, the heater needs to be retired or professionally assessed. And if you've replaced the thermocouple and the tilt switch and it still won't stay lit, there may be an issue with the gas valve itself, which is not a DIY component on this type of heater.

If you've worked through other tabletop or portable propane heaters before, the COH-500 will feel familiar. The thermocouple-and-tilt-switch combination is common across many brands. Readers who've dealt with similar issues on units covered by the Thermo Tiki or Bali Outdoors portable heater manuals will recognize the same diagnostic logic here. If you need the tall mocha mainstays patio heater manual instead, use that model’s corresponding instructions for ignition, flame checks, and shutoff steps. If you're cross-checking steps from a Bali Outdoors portable patio heater manual, use the same logic for verifying the thermocouple and tilt switch Bali Outdoors portable heater manuals. If you're troubleshooting a Thermo Tiki unit too, the Thermo Tiki outdoor propane patio heater manual will help you match the same safety checks to your exact model. The specific parts and tolerances differ, but the troubleshooting sequence is nearly identical: confirm gas supply, check igniter spark, verify the tilt switch isn't falsely triggered, and then focus on the thermocouple.
